FEATURE
6000 Cycle Life@25°C
10240W Capacity
10200W Peak Power
No DIP Automatically Assign Module Address
Solid-State LFP Battery Cells
Increase 8% Energy Density
93% Max.Recommended DOD (Capacity)

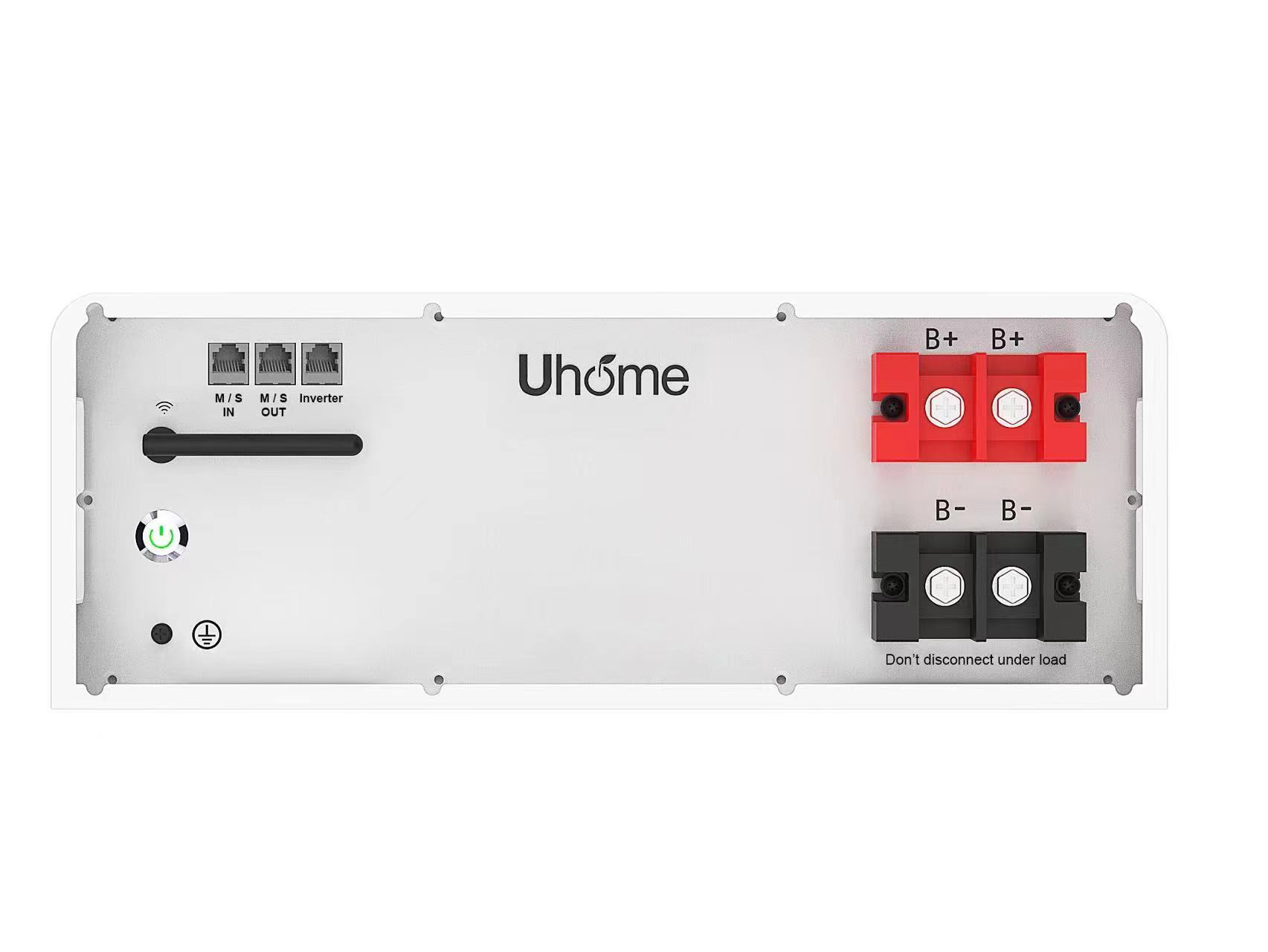

LFP 10240M
Total Energy
10.2kWh
Usable Energy(DC)
9.4kWh
Max Charge Power
10.2kW
Max Disharge Power
10.2kW
Peak Power(Only Discharge)
12kW for 3s
Voltage
48~56Vd.c
Nominal Voltage
51.2Vd.c
Max. Charge Voltage
57.6Vd.c
Max Discharging Current
150A
Max Charging Current
120A
Weight
85kg
