FEATURE
6000 Cycle Life@25°C
5120W Capacity
7680W Peak Power
No DIP Automatically Assign Module Address
Solid-State LFP Battery Cells
1.5C Discharging Rate
Increase 8% Energy Density
93% Max.Recommended DOD (Capacity)

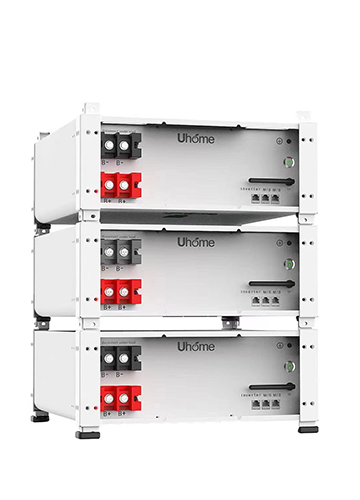

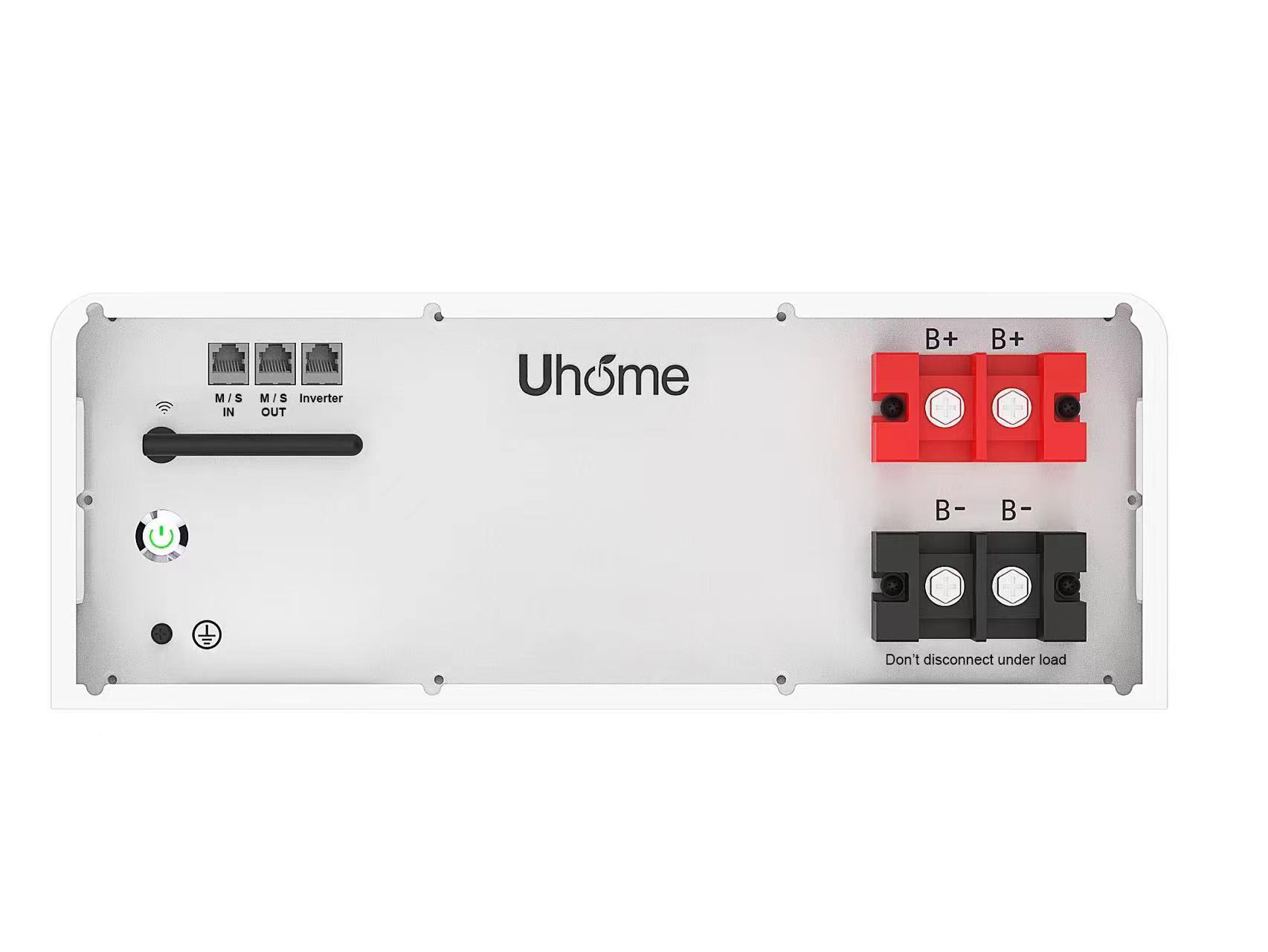

LFP 5120M
Total Energy
5.1kWh
Usable Energy(DC)
4.7kWh
Max Charge Power
5.12kW
Max Disharge Power
7.68kW
Peak Power(Only Discharge)
9kW for 3s
Voltage
48~56Vd.c
Nominal Voltage
51.2Vd.c
Max. Charge Voltage
57.6Vd.c
Max Discharging Current
150A
Max Charging Current
100A
Weight
46kg
DATASHEET
DETAILS
